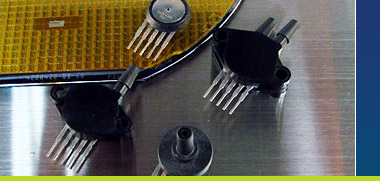

| Based on Sensormate’s proprietary sensor platform the MAP 36 Series incorporates a silicon MEMs pressure sensor with the latest ASIC technology. The series incorporates multi-order digital compensation of offset, span, non-linearity and temperature effects with compensation coefficients stored in an on-board EEPROM.
Applications are numerous but include Manifold Absolute
Pressure or MAP Sensor, pneumatic pressure and fuel vapor pressure.
The MAP 36 Series is one of Sensormate’s most flexible
pressure sensors and can be specified in Gage, Absolute or Differential pressure with pressure ranges from 0.3 to 100 psi.
| Key Features |
| Parameter |
Value |
Remarks |
| Operating Voltage |
2.7-5.5V |
|
| Available Pressure Ranges |
0.3, 0.5, 1, 2, 3, 5, 7, 15, 30, 50 and 100 psi |
Gage, Absolute (15 psi onwards) or Differential |
| Accuracy |
2.5%* or 1.8% FS |
For low pressure and standard versions respectively. |
| Output |
Analog or Digital |
|
| Package |

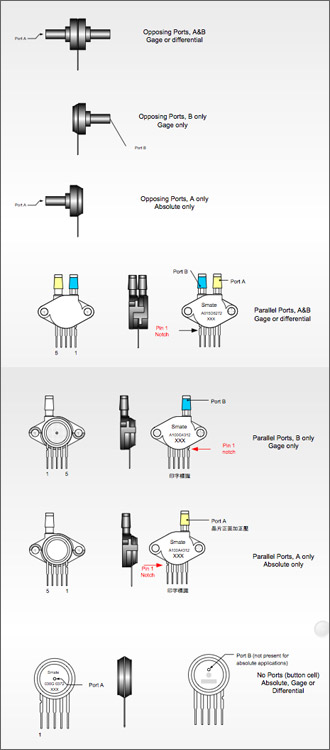

5 pin plastic button cell package with 1, 2 or no ports |
|
*Low pressure accuracy assumes auto-zero
