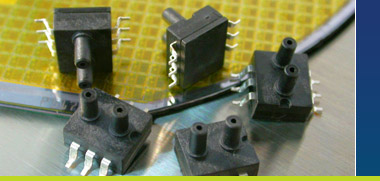

| Based on Sensormate’s proprietary sensor platform the SLP 35 Series incorporates a silicon MEMs pressure sensor with the latest ASIC technology. The series incorporates multi-order digital compensation of offset, span, non-linearity and temperature effects with compensation coefficients stored in an on-chip EEPROM.
The SLP 35 Series can be specified with pressure ranges from
0.3-30 psi.
| Key Features |
| Parameter |
Value |
Remarks |
| Operating Voltage |
2.7-5.5V. |
|
| Available Pressure Ranges |
0.3, 0.5, 1, 2, 3, 5, 7, 15, 30, 50 and 100 psi |
Gage, Differential |
| Accuracy |
2.5%* or 1.8% FS |
For low pressure and standard versions respectively |
| Output |
Analog or Digital |
|
| Package |
6 pin plastic DIP or SMT package with two ports |
|
*Low pressure accuracy assumes auto-zero
