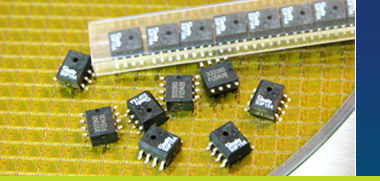

Based on Sensormate’s proprietary packaging techniques the
SOP series incorporates a high quality silicon MEMs pressure
sensor as the sensing element resulting in high linearity and
sensitivity as well as low offset performance.
The ultra small package makes it the best choice when a
miniature pressure sensor is required. The reduction in size is
achieved by mating the package design to our cutting edge
production line. Automated assembly assures high throughput
while stringent quality controls deliver the highest standards
of reliability.
The SOP series is ideal for absolute pressure measurement in
barometers, weather prediction, vacuum sensing and other
absolute applications where cost is a critical factor.
The SOP 30 Series is a specifically targeted product and thus
only available in 15 psi absolute range only.
| Key Features |
| Parameter |
Value |
Remarks |
| Operating Voltage |
3-10V |
|
| Available Pressure Ranges |
15 psi |
Absolute |
| Linearity |
0.3 % FS |
|
| Configuration |
Closed bridge |
|
| Package |
Plastic 6 pin SMT package without port |
|
