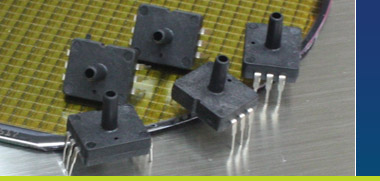

| Based on Sensormate’s proprietary sensor platform the SPD 34 Series incorporates a silicon MEMs pressure sensor with the latest ASIC technology. The series incorporates multi-order digital compensation of offset, span, non-linearity and temperature effects with compensation coefficients stored in an on-board EEPROM.
The SPD 34 Series can be specified with pressure ranges from 5-150 psi.
| Key Features |
| Parameter |
Value |
Remarks |
| Operating Voltage |
2.7-5.5V |
|
| Available Pressure Ranges |
5, 7, 15, 30, 50, 100 and 150 psi |
Gage only |
| Accuracy |
1.8% FS |
|
| Output |
Analog or Digital |
|
| Package |
6 pin plastic DIP package with port |
|
