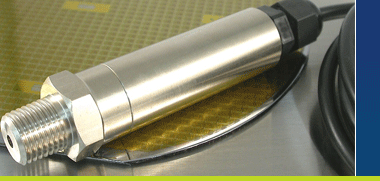

| Based on Sensormate’s proprietary sensor platform the
SST 81 Series incorporates a silicon MEMs pressure sensor with the latest ASIC technology. The series incorporates multi-order digital compensation of offset, span, non-linearity and temperature effects with compensation coefficients stored in an on-board EEPROM.
The series is Sensormate's premium offering for industrial
use and comes with all the standard outputs customers have come
to expect such as 4-20mA, 0-10V and 0-5V.
The SST 81 Series is one of Sensormate’s most flexible
industrial transmitter products and can be ordered with a variety
of pressure and thread fittings giving it the ability to be
specified in Gage pressure with pressure ranges from 0.3 psi to 10
bar.
| Key Features |
| Parameter |
Value |
Remarks |
| Operating Voltage |
6-28V |
Lower end depends on
Output Selected |
| Available Pressure Ranges |
0.3, 0.5, 1.0, 2.0, 3.0,
5.0, 7.0, 10.0 psi and 1.0, 1.6, 2.5,
4.0, 6.0, 10 bar |
Gage, Negative Gage
(vacuum) |
| Accuracy |
|
See datasheet for more
details |
| Output |
4-20mA, 0-5V,
0-10V |
|
| Package |
Metal Housing with 1/4"
NPT Thread |
Nickel Plated Brass |
