| Based on Sensormate’s proprietary packaging techniques the series incorporates a high quality silicon MEMs pressure sensor as the sensing element.
The STD series is ideal for absolute pressure sensing particularly for cable fault detection.
The high pressure versions ( 300 psi ) is also ideal for use as
a high pressure sealed gage pressure sensor. The silicon MEMs sensor is protected from the environment by a drop of silicone gel
enabling it to be used with water and other liquids.

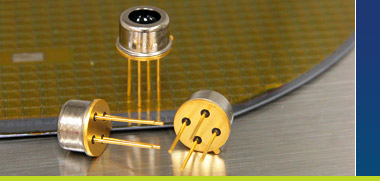

The STD series conforms to other industry standard metal can
( TO5 ) pressure sensor packages. Because of the materials used
in package construction it can typically be specified to higher
absolute
pressure ranges than other pressure sensors with plastic packages.
The STD 60 Series can be specified with pressure ranges from 15-300 psi.
| Key Features |
| Parameter |
Value |
Remarks |
| Operating Voltage |
3-10V |
|
| Available Pressure Ranges |
15, 30, 100 and 300 psi |
Absolute |
| Linearity |
0.3 % FS |
|
| Configuration |
Either open or closed bridge |
|
| Package |
TO-5 metal can package with optional port |
|
