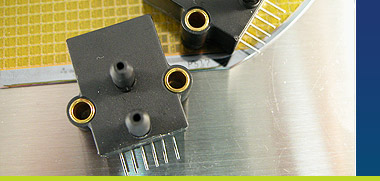

| Based on Sensormate’s proprietary sensor platform the STX 13 Series incorporates a silicon MEMs pressure sensor with the latest ASIC technology. The series incorporates multi-order digital compensation of offset, span, non-linearity and temperature effects with compensation coefficients stored in an on-chip EEPROM.
The STX 13 Series can be specified with pressure ranges from 0.3-3 psi.
| Key Features |
| Parameter |
Value |
Remarks |
| Operating Voltage |
2.7-5.5V |
|
| Available Pressure Ranges |
0.15, 0.3, 0.5, 1, 2, 3 psi |
Gage, Differential |
| Accuracy |
2.2% FS |
2.7% FS for 0.15 psi range |
| Output |
Analog or Digital |
|
| Package |
6 pin plastic DIP package with two ports and bolt holes |
|
